Automatic Transfer Bonnell Spring Coiling Machine for Mattress Springbed

Basic Info

Transport Package	PVC Film or Plywood Box
Trademark	weitu
Origin	China
HS Code	8463300000
Production Capacity	60 Sets

Product Description

Automatic bonnell spring production line is fully automatic system to make a complete bonnell spring mattress in one time. It includes spring coiling, knotting, heat trearment and assembling process. It is highly efficient conforming to CE standard. As manufacturer, Stenburg offers free installation and commissioning.

Product Description

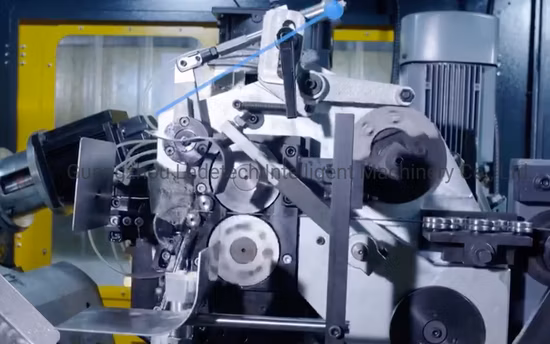

WT-BST80/100 Automatic bonnell spring transfer line is latest model for producing "Bonnell" type innerspring units. It can produce innerspring units directly from wire. Firstly the steel wire is coiled to a spring, and then transferred and inserted to the assembler by the automatic feeding system. After this, the upper and lower springs are coiled together at the same time and helical wire is coiled, cut and clamped at both ends automatically. When a unit is finished, it could be ejected automatically.

Technical Characteristics

1. The production line of the production line from the single spring to the whole double-conical spring bed net is water-flowing, with high degree of automation, and also greatly enhances the safety performance, saves labor, reduces the labor intensity of the operator, and the production efficiency is obtained. A bigger upgrade.

2. The production line has the characteristics of compact structure, simple and safe operation, high production efficiency and low processing cost. It is an ideal equipment for mattress furniture manufacturers.

Technical Specification

Technical Data
Spring Type	Bonnell
Capacity	80 Sheets /8 Hours(1800MM*2000MM)
Max Width	2M
Spring End Ring	Φ65-Φ72MM,Φ75-Φ90MM,Φ82-Φ92MM
Spring Steel Wire Gauge	Φ1.9-Φ2.4MM
Height Wire Gauge	Φ1.3-Φ1.5MM
Spring Height	80-200MM(option <80mm)
Convolutions	4-7 Turns
Total Power	10KVA
Weight	5355KG
Power Requirement	380V,3 Phase,50-60HZ(Option:415V-480V, 220V)
